Analog Devices Inc./Maxim Integrated MAX4012EUK+T

Analog Devices Inc./Maxim Integrated MAX4012EUK+T

Product Attribute    Attribute Value    Select Attribute
Manufacturer:    Analog Devices Inc.
Product Category:    High Speed Operational Amplifiers
Series:    MAX4012
Number of Channels:    1 Channel
SR - Slew Rate:    600 V/us
Voltage Gain dB:    61 dB
CMRR - Common Mode Rejection Ratio:    100 dB
Output Current per Channel:    120 mA
Ib - Input Bias Current:    20 uA
Vos - Input Offset Voltage:    4 mV
Supply Voltage - Max:    11 V
Supply Voltage - Min:    3.15 V
Operating Supply Current:    5.5 mA
Minimum Operating Temperature:    - 40 C
Maximum Operating Temperature:    + 85 C
Mounting Style:    SMD/SMT

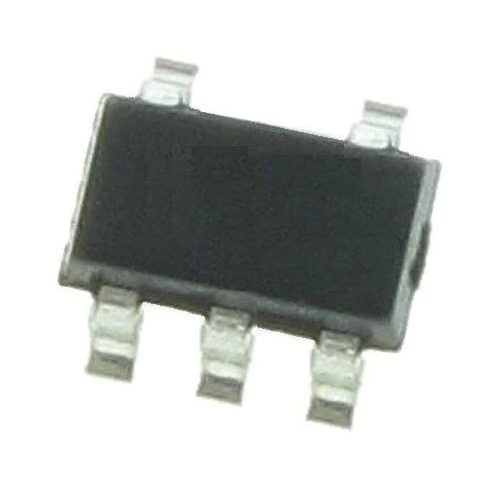

Package / Case:    SOT-23-5
Packaging:    Reel
Packaging:    Cut Tape
Packaging:    MouseReel
3 dB Bandwidth:    200 MHz
Amplifier Type:    Voltage Feedback
Brand:    Analog Devices / Maxim Integrated
en - Input Voltage Noise Density:    10 nV/sqrt Hz
Height:    1.1 mm
Length:    2.9 mm
Operating Supply Voltage:    3.15 V to 11 V
Pd - Power Dissipation:    571 mW
Product:    Operational Amplifiers
Product Type:    Op Amps - High Speed Operational Amplifiers
PSRR - Power Supply Rejection Ratio:    57 dB
Subcategory:    Amplifier ICs
Topology:    Voltage Feedback
Width:    1.63 mm
Part # Aliases:    MAX4012
Unit Weight:    0.000222 oz
×
